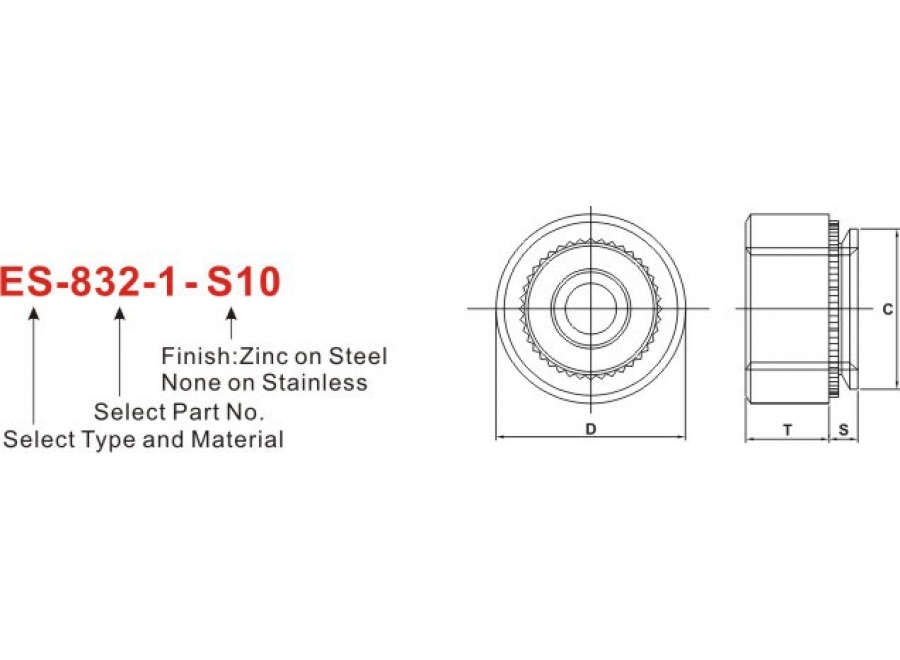

Self Clinching Nuts-2
Type Part No. Thread
Size
S
Max.
Min.Sheet
Thickness
Hole Size
In Sheet
+.003
-.000
C
Max.
D
±.010
T
±.010
Min. distance
centre line hole
to sheet edge
Material
Carbon
Steel
Stainless
Steel
ES ELCS M2-0 M2x0.4 0.77 0.8 4.22 4.2 6.3 1.5 4.8
M2-1 0.97 1
M2-2 1.38 1.4
ES ELCS M2.5-0 M2.5x0.45 0.77 0.8 4.22 4.2 6.3 1.5 4.8
M2.5-1 0.97 1
M2.5-2 1.38 1.4
ES ELCS M3-0 M3x0.5 0.77 0.8 4.22 4.2 6.3 1.5 4.8
M3-1 0.97 1
M3-2 1.38 1.4
ES ELCS M3.5-0 M3.5x0.6 0.77 0.8 4.75 4.73 7.1 1.5 5.6
M3-1 0.97 1
M3-2 1.38 1.4
ES ELCS M4-0 M4x0.7 0.77 0.8 5.41 5.38 7.9 2 6.9
M4-1 0.97 1
M4-2 1.38 1.4
ES ELCS M5-0 M5x0.8 0.77 0.8 6.35 6.33 8.7 2 7.1
M5-1 0.97 1
M5-2 1.38 1.4
ES ELCS M6-0 M6x1.0 0.89 0.92 8.75 8.73 11.05 4.08 8.6
M6-1 1.15 1.2
M6-2 1.38 1.4
M6-3 2.21 2.3
ES ELCS M8-1 M8x1.25 1.38 1.4 10.5 10.47 12.65 5.47 9.7
M8-2 2.21 2.3
ES ELCS M10-1 M10x1.5 2.21 2.31 14 13.97 17.35 7.48 13.5
M10-2 3.05 3.18
◎ Type ES and ESS are recommended for use in steel or aluminum sheet HRB 75~80 or less.
◎ Type ECLS and ECLSS are recommended for use in steel or aluminum sheet HRB 65~70 or less.
