Matreial Description Code
Round Square Hex
Carbon Steel MS1 MS2 MS3
300 Series Stainless Steel MSS1 MSS2 MSS3
Aluminum MA1 MA2 MA3
Brass MB1 MB2 MB3
Nylon MN1 MN2 MN3

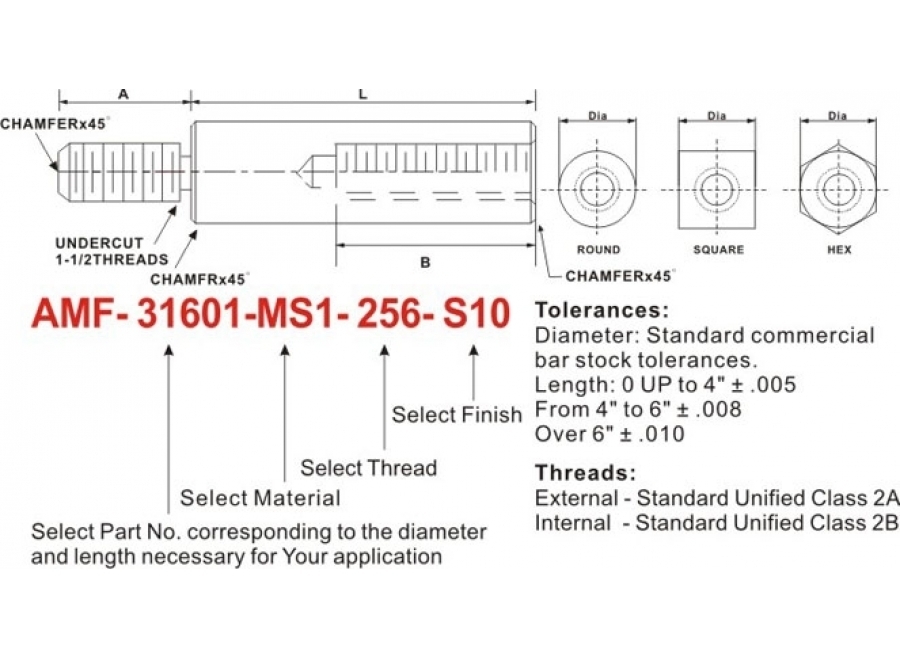

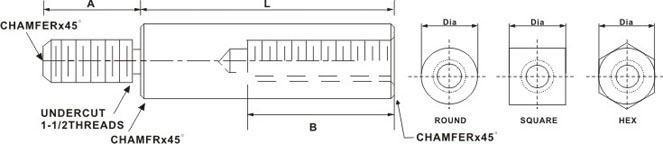

Code Thread A B
256 2-56 5/32 3/16
440 4-40 3/16 1/4
632 6-32 1/4 3/8
832 8-32 3/8 7/16
1032 10-32 3/8 1/2
1224 12-24 1/2 9/16
1420 1/4-20 1/2 9/16
51618 5/16-18 9/16 9/16
Lengths "B" will be tapped to maximum depth.

Finish Description Code
Nickel Plate S1
Chrome Plate S2
Satin Chrome S6
Zinc Plate S10
Zinc Yellow Chromate S11
No Finish S14
Black Oxide S22
Black Zinc S23
Passivate SB5
Anodize Clear SA1
Glossy Anodize Clear SA2
Anodize Black SA3
Glossy Anodize Black SA4
Clear Iridite SA5




Part No. Length Part No. Length Part No. Length
AMF-1201 7/32 AMF-1222 7/8 AMF-1243 2-1/8
AMF-1202 1/4 AMF-1223 29/32 AMF-1244 2-1/4
AMF-1203 9/32 AMF-1224 15/16 AMF-1245 2-3/8
AMF-1204 5/16 AMF-1225 31/32 AMF-1246 2-1/2
AMF-1205 11/32 AMF-1226 1 AMF-1247 2-5/8
AMF-1206 3/8 AMF-1227 1-1/16 AMF-1248 2-3/4
AMF-1207 13/32 AMF-1228 1-1/8 AMF-1249 2-7/8
AMF-1208 7/16 AMF-1229 1-3/16 AMF-1250 3
AMF-1209 15/32 AMF-1230 1-1/4 AMF-1251 3-1/4
AMF-1210 1/2 AMF-1231 1-5/16 AMF-1252 3-1/2
AMF-1211 17/32 AMF-1232 1-3/8 AMF-1253 3-3/4
AMF-1212 9/16 AMF-1233 1-7/16 AMF-1254 4
AMF-1213 19/32 AMF-1234 1-1/2 AMF-1255 4-1/4
AMF-1214 5/8 AMF-1235 1-9/16 AMF-1256 4-1/2
AMF-1215 21/32 AMF-1236 1-5/8 AMF-1257 4-3/4
AMF-1216 11/16 AMF-1237 1-11/16 AMF-1258 5
AMF-1217 23/32 AMF-1238 1-3/4 AMF-1259 5-1/4
AMF-1218 3/4 AMF-1239 1-13/16 AMF-1260 5-1/2
AMF-1219 25/32 AMF-1240 1-7/8 AMF-1261 5-3/4
AMF-1220 13/16 AMF-1241 1-15/16 AMF-1262 6
AMF-1221 27/32 AMF-1242 2
