ETM Inc-Electronic Hardware, Handles, Standoffs

Products Info

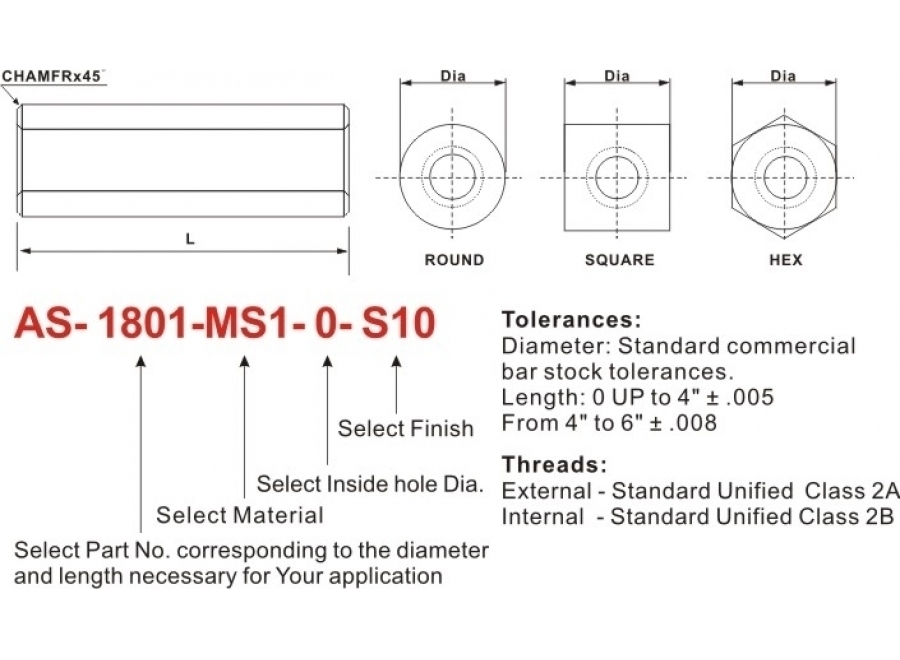

Description

Matreial Description	Code
Matreial Description	Round	Square	Hex
Carbon Steel	MS1	MS2	MS3
300 Series Stainless Steel	MSS1	MSS2	MSS3
Aluminum	MA1	MA2	MA3
Brass	MB1	MB2	MB3
Nylon	MN1	MN2	MN3

Code	Thread	Inside hole Dia. +.010 -.000
0	0-80	.640
2	2-56	.090
4	4-40	.115
6	6-32	.140
8	8-32	.166
10	10-32	.192
12	12-24	.218
1/4	1/4-20	.252
5/16	5/16-18	.315
3/8	3/8-16	.380
7/16	7/16-14	.440
1/2	1/2-20	.505

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
No Finish	S14
Black Oxide	S22
Black Zinc	S23
Passivate	SB5
Anodize Clear	SA1
Glossy Anodize Clear	SA2
Anodize Black	SA3
Glossy Anodize Black	SA4
Clear Iridite	SA5

Part No.	Length	Part No.	Length	Part No.	Length
AS- 5801	1/16	AS- 5843	23/32	AS- 588	1-3/8
AS- 5802	5/64	AS- 5844	47/64	AS- 5886	1-25/64
AS- 5803	3/32	AS- 5845	3/4	AS- 5887	1-13/32
AS- 5804	7/64	AS- 5846	49/64	AS- 5888	1-27/64
AS- 5805	1/8	AS- 5847	25/32	AS- 5889	1-7/16
AS- 5806	9/64	AS- 5848	51/64	AS- 5890	1-29/64
AS- 5807	5/32	AS- 5849	13/16	AS- 5891	1-15/32
AS- 5808	11/64	AS- 5850	53/64	AS- 5892	1-31/64
AS- 5809	3/16	AS- 5851	27/32	AS- 5893	1-1/2
AS- 5810	13/64	AS- 5852	55/64	AS- 5894	1-33/64
AS- 5811	7/32	AS- 5853	7/8	AS- 5895	1-17/32
AS- 5812	15/64	AS- 5854	57/64	AS- 5896	1-35/64
AS- 5813	1/4	AS- 5855	29/32	AS- 5897	1-9/16
AS- 5814	17/64	AS- 5856	59/64	AS- 5898	1-37/64
AS- 5815	9/32	AS- 5857	15/16	AS- 5899	1-19/32
AS- 5816	19/64	AS- 5858	61/64	AS- 58100	1-39/64
AS- 5817	5/16	AS- 5859	31/32	AS- 58101	1-5/8
AS- 5818	21/64	AS- 5860	63/64	AS- 58102	1-41/64
AS- 5819	11/32	AS- 5861	1	AS- 58103	1-21/32
AS- 5820	23/64	AS- 5862	1-1/64	AS- 58104	1-43/64
AS- 5821	3/8	AS- 5863	1-1/32	AS- 58105	1-11/16
AS- 5822	25/64	AS- 5864	1-3/64	AS- 58106	1-45/64
AS- 1823	13/32	AS- 5865	1-1/16	AS- 58107	1-23/32
AS- 1824	27/64	AS- 5866	1-5/64	AS- 58108	1-47/64
AS- 1825	7/16	AS- 5867	1-3/32	AS- 58109	1-3/4
AS- 1826	29/64	AS- 5868	1-7/64	AS- 58110	1-3/4
AS- 1827	15/32	AS- 5869	1-1/8	AS- 58111	1-25/32
AS- 1828	31/64	AS- 5870	1-9/64	AS- 58112	1-51/64
AS- 1829	1/2	AS- 5871	1-5/32	AS- 58113	1-13/16
AS- 1830	33/64	AS- 5872	1-11/64	AS- 58114	1-53/64
AS- 1831	17/32	AS- 5873	1-3/16	AS- 58115	1-27/32
AS- 1832	35/64	AS- 5874	1-13/64	AS- 58116	1-55/64
AS- 1833	9/16	AS- 5875	1-7/32	AS- 58117	1-7/8
AS- 1834	37/64	AS- 5876	1-15/64	AS- 58118	1-57/64
AS- 1835	19/32	AS- 5877	1-1/4	AS- 58119	1-29/32
AS- 1836	39/64	AS- 5878	1-17/64	AS- 58120	1-59/64
AS- 1837	5/8	AS- 5879	1-9/32	AS- 58121	1-15/16
AS- 1838	41/64	AS- 5880	1-19/64	AS- 58122	1-61/64
AS- 1839	21/32	AS- 5881	1-5/16	AS- 58123	1-31/32
AS- 1840	43/64	AS- 5882	1-21/64	AS- 58124	1-63/64
AS- 1841	11/16	AS- 5883	1-11/32	AS- 58125	2
AS- 1842	45/64	AS- 5884	1-23/64
