ETM Inc-Electronic Hardware, Handles, Standoffs

Products Info

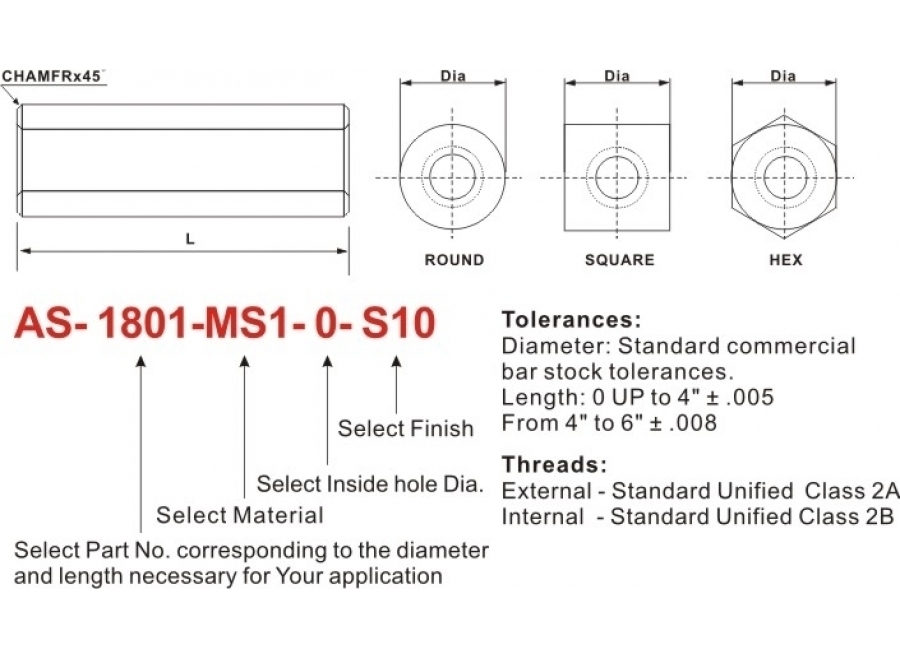

Description

Matreial Description	Code
Matreial Description	Round	Square	Hex
Carbon Steel	MS1	MS2	MS3
300 Series Stainless Steel	MSS1	MSS2	MSS3
Aluminum	MA1	MA2	MA3
Brass	MB1	MB2	MB3
Nylon	MN1	MN2	MN3

Code	Thread	Inside hole Dia. +.010 -.000
0	0-80	.640
2	2-56	.090
4	4-40	.115
6	6-32	.140
8	8-32	.166
10	10-32	.192
12	12-24	.218
1/4	1/4-20	.252
5/16	5/16-18	.315
3/8	3/8-16	.380
7/16	7/16-14	.440
1/2	1/2-20	.505

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
No Finish	S14
Black Oxide	S22
Black Zinc	S23
Passivate	SB5
Anodize Clear	SA1
Glossy Anodize Clear	SA2
Anodize Black	SA3
Glossy Anodize Black	SA4
Clear Iridite	SA5

Part No.	Length	Part No.	Length	Part No.	Length
AS- 1201	1/16	AS- 1243	23/32	AS- 128	1-3/8
AS- 1202	5/64	AS- 1244	47/64	AS- 1286	1-25/64
AS- 1203	3/32	AS- 1245	3/4	AS- 1287	1-13/32
AS- 1204	7/64	AS- 1246	49/64	AS- 1288	1-27/64
AS- 1205	1/8	AS- 1247	25/32	AS- 1289	1-7/16
AS- 1206	9/64	AS- 1248	51/64	AS- 1290	1-29/64
AS- 1207	5/32	AS- 1249	13/16	AS- 1291	1-15/32
AS- 1208	11/64	AS- 1250	53/64	AS- 1292	1-31/64
AS- 1209	3/16	AS- 1251	27/32	AS- 1293	1-1/2
AS- 1210	13/64	AS- 1252	55/64	AS- 1294	1-33/64
AS- 1211	7/32	AS- 1253	7/8	AS- 1295	1-17/32
AS- 1212	15/64	AS- 1254	57/64	AS- 1296	1-35/64
AS- 1213	1/4	AS- 1255	29/32	AS- 1297	1-9/16
AS- 1214	17/64	AS- 1256	59/64	AS- 1298	1-37/64
AS- 1215	9/32	AS- 1257	15/16	AS- 1299	1-19/32
AS- 1216	19/64	AS- 1258	61/64	AS- 12100	1-39/64
AS- 1217	5/16	AS- 1259	31/32	AS- 12101	1-5/8
AS- 1218	21/64	AS- 1260	63/64	AS- 12102	1-41/64
AS- 1219	11/32	AS- 1261	1	AS- 12103	1-21/32
AS- 1220	23/64	AS- 1262	1-1/64	AS- 12104	1-43/64
AS- 1221	3/8	AS- 1263	1-1/32	AS- 12105	1-11/16
AS- 1222	25/64	AS- 1264	1-3/64	AS- 12106	1-45/64
AS- 1823	13/32	AS- 1265	1-1/16	AS- 12107	1-23/32
AS- 1824	27/64	AS- 1266	1-5/64	AS- 12108	1-47/64
AS- 1825	7/16	AS- 1267	1-3/32	AS- 12109	1-3/4
AS- 1826	29/64	AS- 1268	1-7/64	AS- 12110	1-3/4
AS- 1827	15/32	AS- 1269	1-1/8	AS- 12111	1-25/32
AS- 1828	31/64	AS- 1270	1-9/64	AS- 12112	1-51/64
AS- 1829	1/2	AS- 1271	1-5/32	AS- 12113	1-13/16
AS- 1830	33/64	AS- 1272	1-11/64	AS- 12114	1-53/64
AS- 1831	17/32	AS- 1273	1-3/16	AS- 12115	1-27/32
AS- 1832	35/64	AS- 1274	1-13/64	AS- 12116	1-55/64
AS- 1833	9/16	AS- 1275	1-7/32	AS- 12117	1-7/8
AS- 1834	37/64	AS- 1276	1-15/64	AS- 12118	1-57/64
AS- 1835	19/32	AS- 1277	1-1/4	AS- 12119	1-29/32
AS- 1836	39/64	AS- 1278	1-17/64	AS- 12120	1-59/64
AS- 1837	5/8	AS- 1279	1-9/32	AS- 12121	1-15/16
AS- 1838	41/64	AS- 1280	1-19/64	AS- 12122	1-61/64
AS- 1839	21/32	AS- 1281	1-5/16	AS- 12123	1-31/32
AS- 1840	43/64	AS- 1282	1-21/64	AS- 12124	1-63/64
AS- 1841	11/16	AS- 1283	1-11/32	AS- 12125	2
AS- 1842	45/64	AS- 1284	1-23/64
