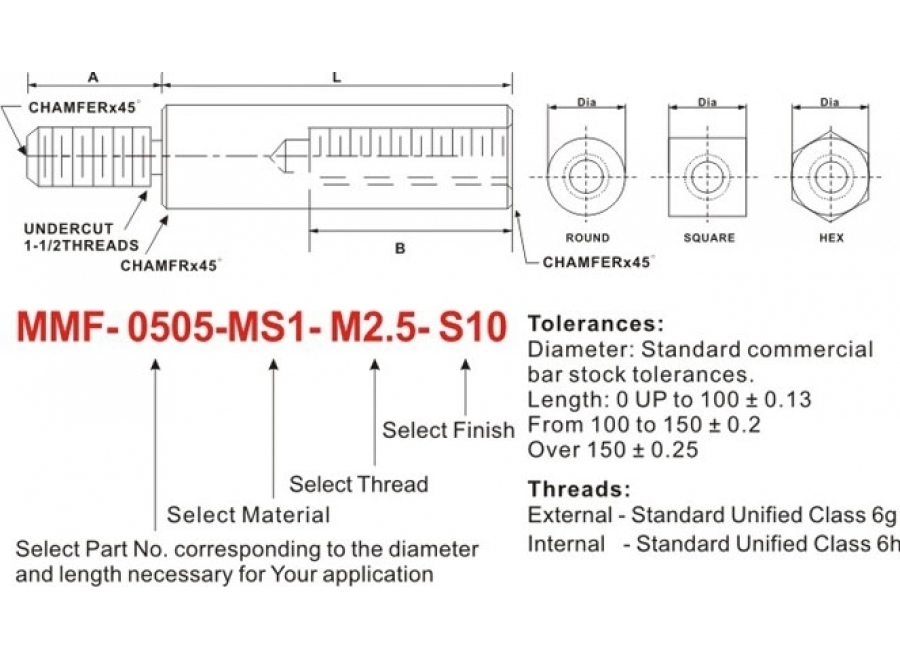

| Matreial Description |
Code |
| Round |
Square |
Hex |
| Carbon Steel |
MS1 |
MS2 |
MS3 |
| 300 Series Stainless Steel |
MSS1 |
MSS2 |
MSS3 |
| Aluminum |
MA1 |
MA2 |
MA3 |
| Brass |
MB1 |
MB2 |
MB3 |
| Nylon |
MN1 |
MN2 |
MN3 |
|
|
| Code |
Thread |
A |
B |
| M2.5 |
M2.5x0.45 |
3.97 |
4.8 |
| M3 |
M3x0.5 |
4.76 |
6.4 |
| M3.5 |
M3.5x0.6 |
6.35 |
9.5 |
| M4 |
M4x0.7 |
9.53 |
11.1 |
| M5 |
M5x0.8 |
9.5 |
12.7 |
| M6 |
M6x1.0 |
12.7 |
15 |
| M8 |
M8x1.25 |
12.7 |
15 |
| M10 |
M10x1.5 |
15 |
16 |
Lengths "B" will be tapped to maximum depth. |
|
| Finish Description |
Code |
| Nickel Plate |
S1 |
| Chrome Plate |
S2 |
| Satin Chrome |
S6 |
| Zinc Plate |
S10 |
| Zinc Yellow Chromate |
S11 |
| No Finish |
S14 |
| Black Oxide |
S22 |
| Black Zinc |
S23 |
| Passivate |
SB5 |
| Anodize Clear |
SA1 |
| Glossy Anodize Clear |
SA2 |
| Anodize Black |
SA3 |
| Glossy Anodize Black |
SA4 |
| Clear Iridite |
SA5 |
|
