HEX THUMB NUTS  (American Standard)

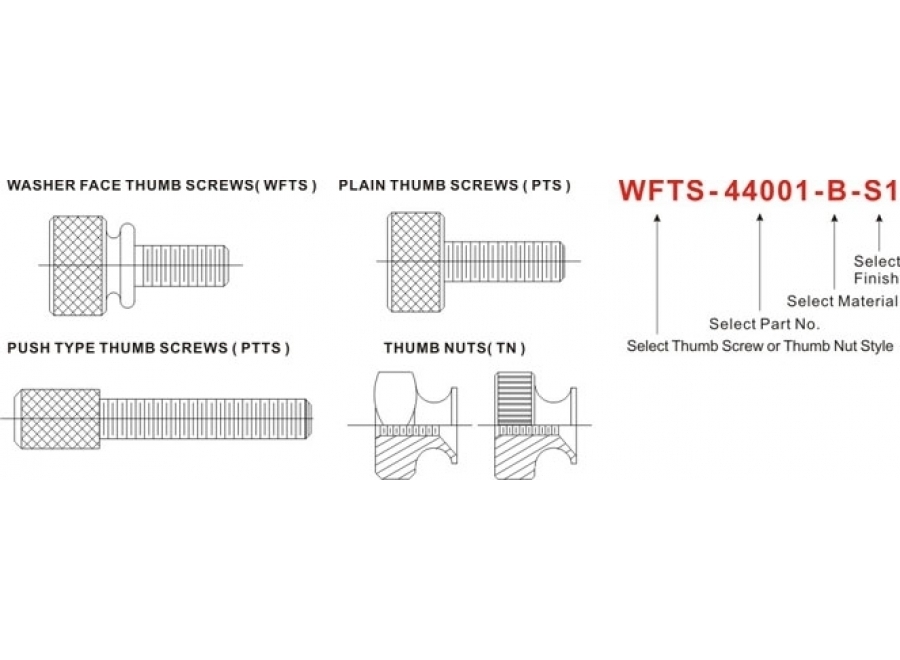

Thumb Screw & Thumb Nut Code
Washer Face Thumb Svrews WFTS
Plain Thumb Screws PTS
Push Type Thumb Screws PTTS
Thumb Nuts ( Round ) TN-R
Thumb Nuts ( Hex ) TN-H

Material Description Code
Aluminum A
Brass B
Carbon Steel S
300 Series Stainless Steel SS

Finish Description Code
Nickel Plate S1
Chrome Plate S2
Satin Chrome S6
Zinc Plate S10
Zinc Yellow Chromate S11
Black Oxide S22
Black Zinc S23
Tin Plated S24
No Finish S14
Passivate SB5
Anodize Clear SA1
Glossy Anodize Clear SA2
Anodize Black SA3
Glossy Anodize Black SA4
Clear Iridite SA5

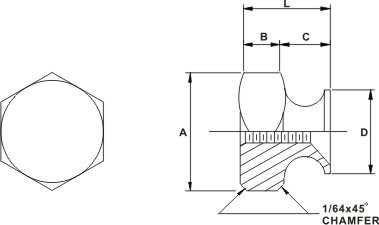

Part No. Thread
Size
A
+.020
-.000
B
+.015
-.015
C
+.010
-.010
D
+.030
-.030
L
+.015
-.015
TN-H-25601 2-56 1/4 1/8 1/8 3/16 1/4
TN-H-44001 4-40 5/16 1/8 1/8 1/4 1/4
TN-H-63201 6-32 3/8 1/8 5/32 11/32 9/32
TN-H-83201 8-32 7/16 1/8 5/32 3/8 9/32
TN-H-102401 10-24 1/2 5/32 3/16 13/32 11/32
TN-H-103201 10-32 1/2 5/32 3/16 13/32 11/32
TN-H-142001 1/4-20 9/16 5/32 7/32 15/32 3/8
TN-H-5161801 5/16-18 5/8 3/16 7/32 17/32 13/32
TN-H-381601 3/8-16 3/4 7/32 1/4 5/8 15/32
