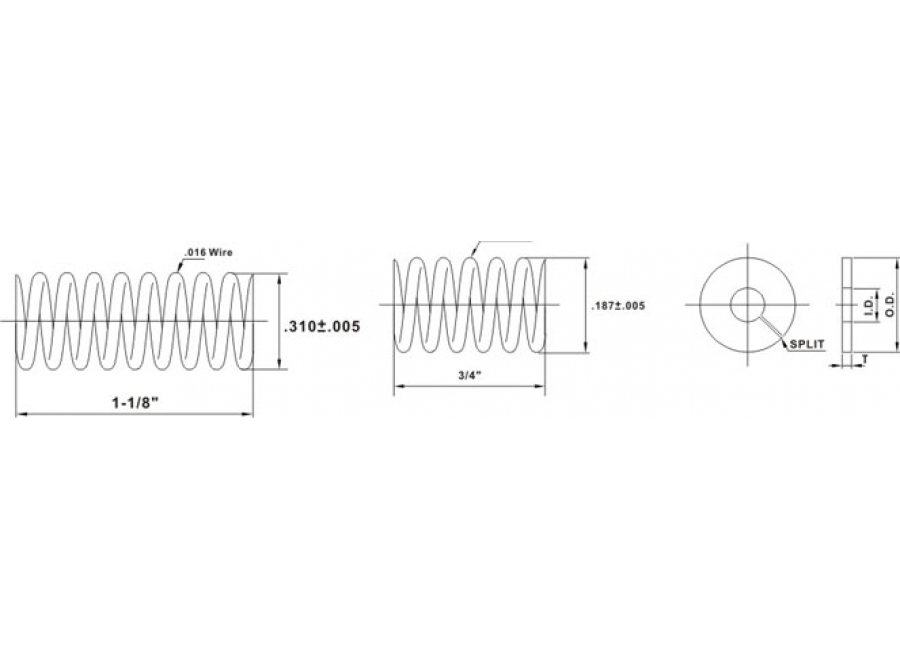

| Part No. |
Material |
Thread
Size |
O.D.
+.003
-.003 |
I.D.
+.003
-.003 |
L
+.003
-.003 |
| WASHER-ACP1 |
Satinless Steel 300Series |
4-40 |
.171 |
.093 |
.010 |
| WASHER-ACP2 |
Satinless Steel 300Series |
6-32 |
.171 |
.112 |
.010 |
| WASHER-ACP3 |
Satinless Steel 300Series |
8-32 |
.312 |
.146 |
.012 |
| WASHER-ACP4 |
Satinless Steel 300Series |
10-24 |
.312 |
.166 |
.012 |
| WASHER-ACP5 |
Satinless Steel 300Series |
10-32 |
.312 |
.166 |
.012 |
| WASHER-ACP6 |
Satinless Steel 300Series |
12-24 |
.312 |
.190 |
.012 |
| WASHER-ACP7 |
Satinless Steel 300Series |
1/4-20 |
.312 |
.204 |
.012 |
| WASHER-ACP8 |
Satinless Steel 300Series |
1/4-28 |
.312 |
.214 |
.012 |
