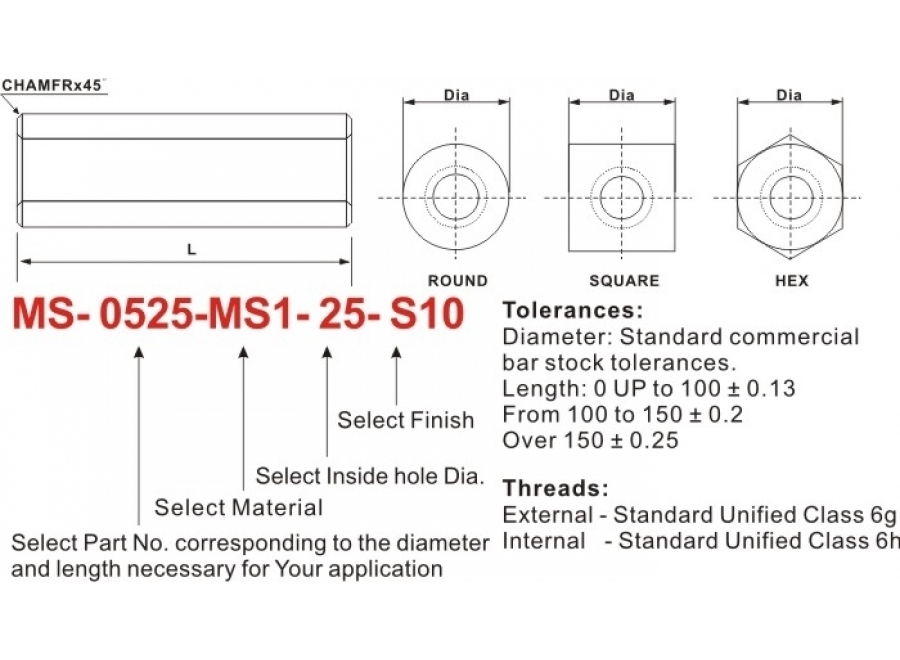

10mm Diameter Clear Hole Spacers

Description

Matreial Description	Code
Matreial Description	Round	Square	Hex
Carbon Steel	MS1	MS2	MS3
300 Series Stainless Steel	MSS1	MSS2	MSS3
Aluminum	MA1	MA2	MA3
Brass	MB1	MB2	MB3
Nylon	MN1	MN2	MN3

Code	Thread	Inside hole Dia. +.03 -.00
25	M2.5x0.45	2.7
3	M3x0.5	3.2
35	M3.5x0.6	3.7
4	M4x0.7	4.3
5	M5x0.8	5.3
6	M6x1	6.4
8	M8x1.25	8.4
10	M10x1.5	10.5
12	M12	13
14	M14	15

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
No Finish	S14
Black Oxide	S22
Black Zinc	S23
Passivate	SB5
Anodize Clear	SA1
Glossy Anodize Clear	SA2
Anodize Black	SA3
Glossy Anodize Black	SA4
Clear Iridite	SA5

Part No.	Length	Part No.	Length	Part No.	Length
MS- 1001	1	MS- 1018	18	MS- 1035	35
MS- 1002	2	MS- 1019	19	MS- 1036	36
MS- 1003	3	MS- 1020	20	MS- 1037	37
MS- 1004	4	MS- 1021	21	MS- 1038	38
MS- 1005	5	MS- 1022	22	MS- 1039	39
MS- 1006	6	MS- 1023	23	MS- 1040	40
MS- 1007	7	MS- 1024	24	MS- 1041	41
MS- 1008	8	MS- 1025	25	MS- 1042	42
MS- 1009	9	MS- 1026	26	MS- 1043	43
MS- 1010	10	MS- 1027	27	MS- 1044	44
MS- 1011	11	MS- 1028	28	MS- 1045	45
MS- 1012	12	MS- 1029	29	MS- 1046	46
MS- 1013	13	MS- 1030	30	MS- 1047	47
MS- 1014	14	MS- 1031	31	MS- 1048	48
MS- 1015	15	MS- 1032	32	MS- 1049	49
MS- 1016	16	MS- 1033	33	MS- 1050	50
MS- 1017	17	MS- 1034	34	MS- 1051	51
