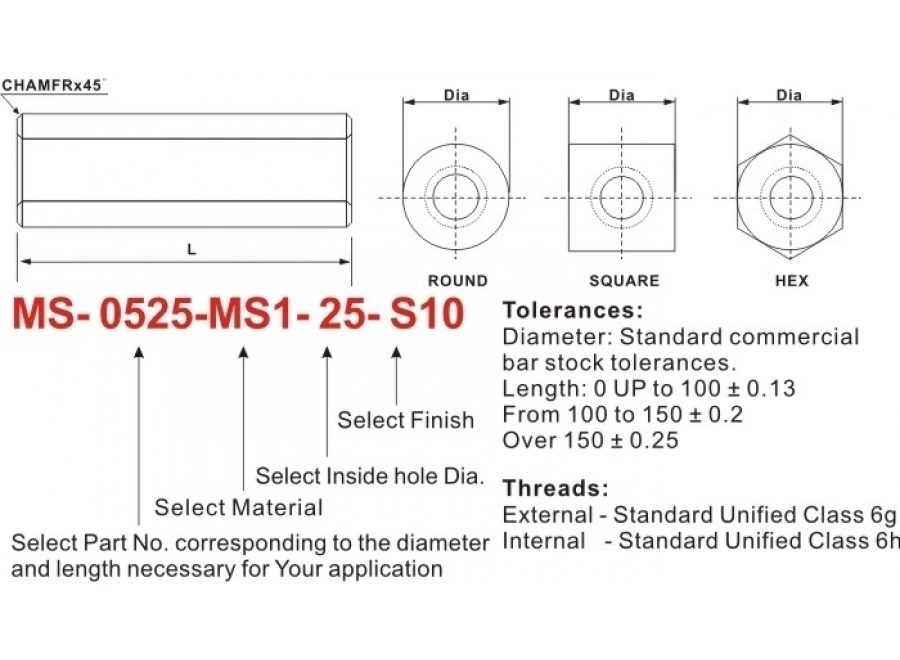

16mm Diameter Clear Hole Spacers

Description

Matreial Description	Code
Matreial Description	Round	Square	Hex
Carbon Steel	MS1	MS2	MS3
300 Series Stainless Steel	MSS1	MSS2	MSS3
Aluminum	MA1	MA2	MA3
Brass	MB1	MB2	MB3
Nylon	MN1	MN2	MN3

Code	Thread	Inside hole Dia. +.03 -.00
25	M2.5x0.45	2.7
3	M3x0.5	3.2
35	M3.5x0.6	3.7
4	M4x0.7	4.3
5	M5x0.8	5.3
6	M6x1	6.4
8	M8x1.25	8.4
10	M10x1.5	10.5
12	M12	13
14	M14	15

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
No Finish	S14
Black Oxide	S22
Black Zinc	S23
Passivate	SB5
Anodize Clear	SA1
Glossy Anodize Clear	SA2
Anodize Black	SA3
Glossy Anodize Black	SA4
Clear Iridite	SA5

Part No.	Length	Part No.	Length	Part No.	Length
MS- 1601	1	MS- 1618	18	MS- 1635	35
MS- 1602	2	MS- 1619	19	MS- 1636	36
MS- 1603	3	MS- 1620	20	MS- 1637	37
MS- 1604	4	MS- 1621	21	MS- 1638	38
MS- 1605	5	MS- 1622	22	MS- 1639	39
MS- 1606	6	MS- 1623	23	MS- 1640	40
MS- 1607	7	MS- 1624	24	MS- 1641	41
MS- 1608	8	MS- 1625	25	MS- 1642	42
MS- 1609	9	MS- 1626	26	MS- 1643	43
MS- 1610	10	MS- 1627	27	MS- 1644	44
MS- 1611	11	MS- 1628	28	MS- 1645	45
MS- 1612	12	MS- 1629	29	MS- 1646	46
MS- 1613	13	MS- 1630	30	MS- 1647	47
MS- 1614	14	MS- 1631	31	MS- 1648	48
MS- 1615	15	MS- 1632	32	MS- 1649	49
MS- 1616	16	MS- 1633	33	MS- 1650	50
MS- 1617	17	MS- 1634	34	MS- 1651	51
