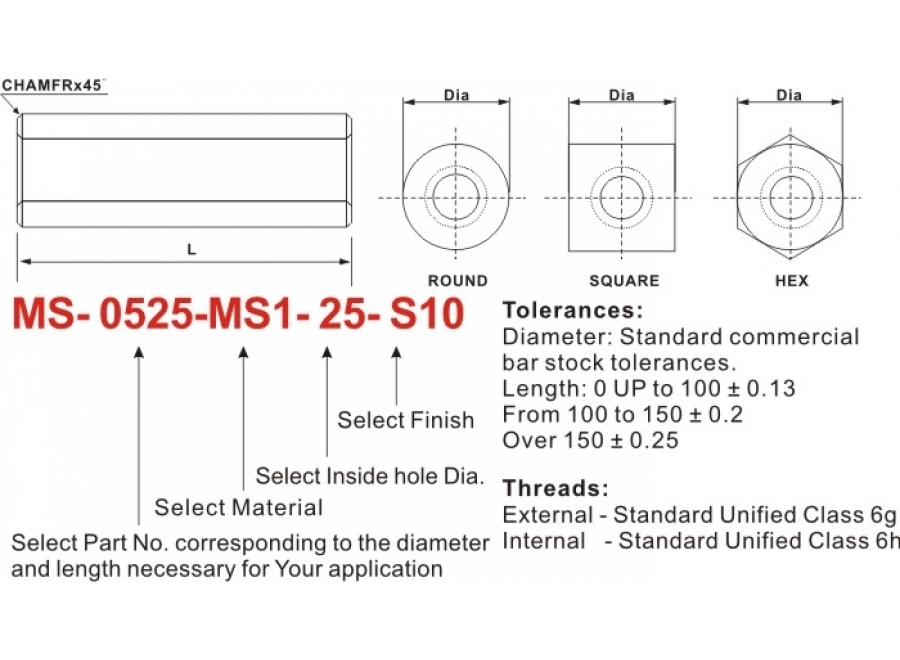

7mm Diameter Clear Hole Spacers

Description

Matreial Description	Code
Matreial Description	Round	Square	Hex
Carbon Steel	MS1	MS2	MS3
300 Series Stainless Steel	MSS1	MSS2	MSS3
Aluminum	MA1	MA2	MA3
Brass	MB1	MB2	MB3
Nylon	MN1	MN2	MN3

Code	Thread	Inside hole Dia. +.03 -.00
25	M2.5x0.45	2.7
3	M3x0.5	3.2
35	M3.5x0.6	3.7
4	M4x0.7	4.3
5	M5x0.8	5.3
6	M6x1	6.4
8	M8x1.25	8.4
10	M10x1.5	10.5
12	M12	13
14	M14	15

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
No Finish	S14
Black Oxide	S22
Black Zinc	S23
Passivate	SB5
Anodize Clear	SA1
Glossy Anodize Clear	SA2
Anodize Black	SA3
Glossy Anodize Black	SA4
Clear Iridite	SA5

Part No.	Length	Part No.	Length	Part No.	Length
MS- 0701	1	MS- 0718	18	MS- 0735	35
MS- 0702	2	MS- 0719	19	MS- 0736	36
MS- 0703	3	MS- 0720	20	MS- 0737	37
MS- 0704	4	MS- 0721	21	MS- 0738	38
MS- 0705	5	MS- 0722	22	MS- 0739	39
MS- 0706	6	MS- 0723	23	MS- 0740	40
MS- 0707	7	MS- 0724	24	MS- 0741	41
MS- 0708	8	MS- 0725	25	MS- 0742	42
MS- 0709	9	MS- 0726	26	MS- 0743	43
MS- 0710	10	MS- 0727	27	MS- 0744	44
MS- 0711	11	MS- 0728	28	MS- 0745	45
MS- 0712	12	MS- 0729	29	MS- 0746	46
MS- 0713	13	MS- 0730	30	MS- 0747	47
MS- 0714	14	MS- 0731	31	MS- 0748	48
MS- 0715	15	MS- 0732	32	MS- 0749	49
MS- 0716	16	MS- 0733	33	MS- 0750	50
MS- 0717	17	MS- 0734	34	MS- 0751	51
