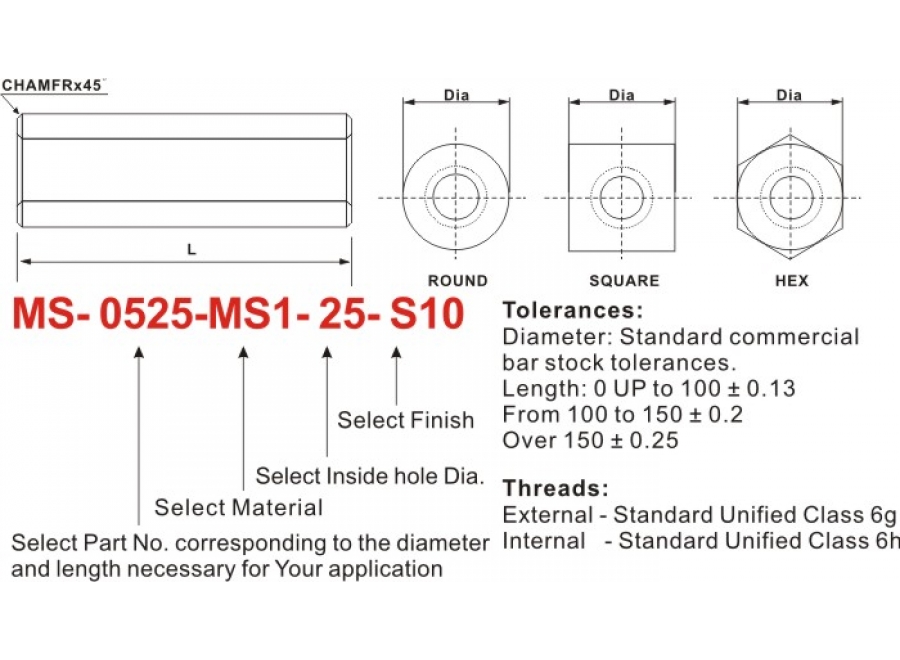

5mm Diameter Clear Hole Spacers

Description

Matreial Description	Code
Matreial Description	Round	Square	Hex
Carbon Steel	MS1	MS2	MS3
300 Series Stainless Steel	MSS1	MSS2	MSS3
Aluminum	MA1	MA2	MA3
Brass	MB1	MB2	MB3
Nylon	MN1	MN2	MN3

Code	Thread	Inside hole Dia. +.03 -.00
25	M2.5x0.45	2.7
3	M3x0.5	3.2
35	M3.5x0.6	3.7
4	M4x0.7	4.3
5	M5x0.8	5.3
6	M6x1	6.4
8	M8x1.25	8.4
10	M10x1.5	10.5
12	M12	13
14	M14	15

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
No Finish	S14
Black Oxide	S22
Black Zinc	S23
Passivate	SB5
Anodize Clear	SA1
Glossy Anodize Clear	SA2
Anodize Black	SA3
Glossy Anodize Black	SA4
Clear Iridite	SA5

Part No.	Length	Part No.	Length	Part No.	Length
MS- 0501	1	MS- 0518	18	MS- 0535	35
MS- 0502	2	MS- 0519	19	MS- 0536	36
MS- 0503	3	MS- 0520	20	MS- 0537	37
MS- 0504	4	MS- 0521	21	MS- 0538	38
MS- 0505	5	MS- 0522	22	MS- 0539	39
MS- 0506	6	MS- 0523	23	MS- 0540	40
MS- 0507	7	MS- 0524	24	MS- 0541	41
MS- 0508	8	MS- 0525	25	MS- 0542	42
MS- 0509	9	MS- 0526	26	MS- 0543	43
MS- 0510	10	MS- 0527	27	MS- 0544	44
MS- 0511	11	MS- 0528	28	MS- 0545	45
MS- 0512	12	MS- 0529	29	MS- 0546	46
MS- 0513	13	MS- 0530	30	MS- 0547	47
MS- 0514	14	MS- 0531	31	MS- 0548	48
MS- 0515	15	MS- 0532	32	MS- 0549	49
MS- 0516	16	MS- 0533	33	MS- 0550	50
MS- 0517	17	MS- 0534	34	MS- 0551	51
