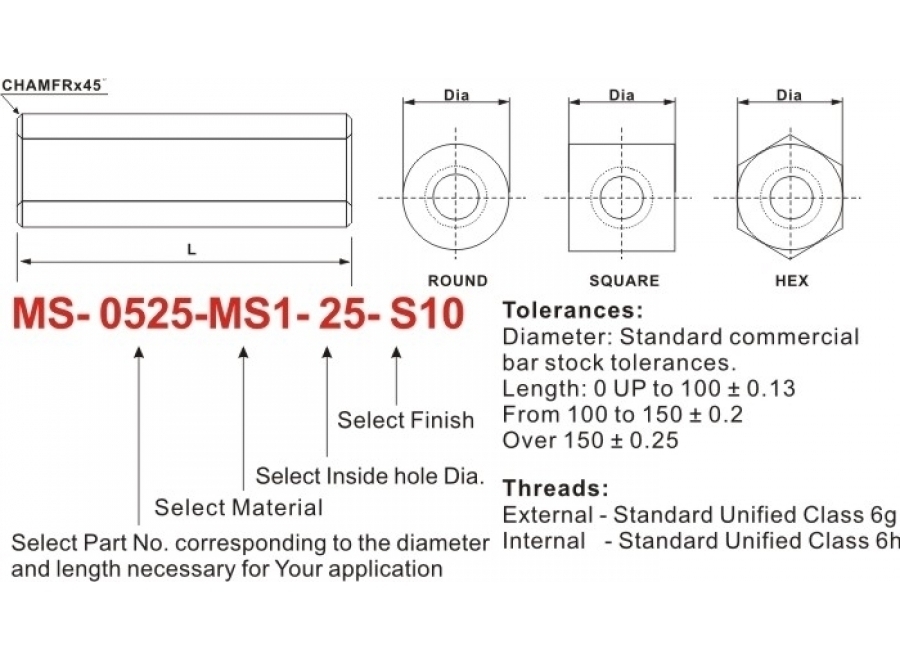

19mm Diameter Clear Hole Spacers

Description

Matreial Description	Code
Matreial Description	Round	Square	Hex
Carbon Steel	MS1	MS2	MS3
300 Series Stainless Steel	MSS1	MSS2	MSS3
Aluminum	MA1	MA2	MA3
Brass	MB1	MB2	MB3
Nylon	MN1	MN2	MN3

Code	Thread	Inside hole Dia. +.03 -.00
25	M2.5x0.45	2.7
3	M3x0.5	3.2
35	M3.5x0.6	3.7
4	M4x0.7	4.3
5	M5x0.8	5.3
6	M6x1	6.4
8	M8x1.25	8.4
10	M10x1.5	10.5
12	M12	13
14	M14	15

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
No Finish	S14
Black Oxide	S22
Black Zinc	S23
Passivate	SB5
Anodize Clear	SA1
Glossy Anodize Clear	SA2
Anodize Black	SA3
Glossy Anodize Black	SA4
Clear Iridite	SA5

Part No.	Length	Part No.	Length	Part No.	Length
MS- 1901	1	MS- 1918	18	MS- 1935	35
MS- 1902	2	MS- 1919	19	MS- 1936	36
MS- 1903	3	MS- 1920	20	MS- 1937	37
MS- 1904	4	MS- 1921	21	MS- 1938	38
MS- 1905	5	MS- 1922	22	MS- 1939	39
MS- 1906	6	MS- 1923	23	MS- 1940	40
MS- 1907	7	MS- 1924	24	MS- 1941	41
MS- 1908	8	MS- 1925	25	MS- 1942	42
MS- 1909	9	MS- 1926	26	MS- 1943	43
MS- 1910	10	MS- 1927	27	MS- 1944	44
MS- 1911	11	MS- 1928	28	MS- 1945	45
MS- 1912	12	MS- 1929	29	MS- 1946	46
MS- 1913	13	MS- 1930	30	MS- 1947	47
MS- 1914	14	MS- 1931	31	MS- 1948	48
MS- 1915	15	MS- 1932	32	MS- 1949	49
MS- 1916	16	MS- 1933	33	MS- 1950	50
MS- 1917	17	MS- 1934	34	MS- 1951	51
