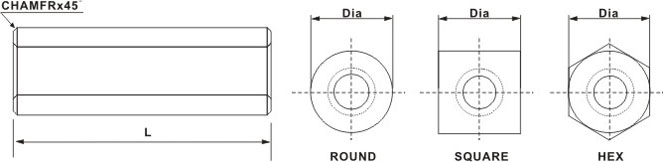

6mm Diameter Clear Hole Spacers

Description

Matreial Description	Code
Matreial Description	Round	Square	Hex
Carbon Steel	MS1	MS2	MS3
300 Series Stainless Steel	MSS1	MSS2	MSS3
Aluminum	MA1	MA2	MA3
Brass	MB1	MB2	MB3
Nylon	MN1	MN2	MN3

Code	Thread	Inside hole Dia. +.03 -.00
25	M2.5x0.45	2.7
3	M3x0.5	3.2
35	M3.5x0.6	3.7
4	M4x0.7	4.3
5	M5x0.8	5.3
6	M6x1	6.4
8	M8x1.25	8.4
10	M10x1.5	10.5
12	M12	13
14	M14	15

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
No Finish	S14
Black Oxide	S22
Black Zinc	S23
Passivate	SB5
Anodize Clear	SA1
Glossy Anodize Clear	SA2
Anodize Black	SA3
Glossy Anodize Black	SA4
Clear Iridite	SA5

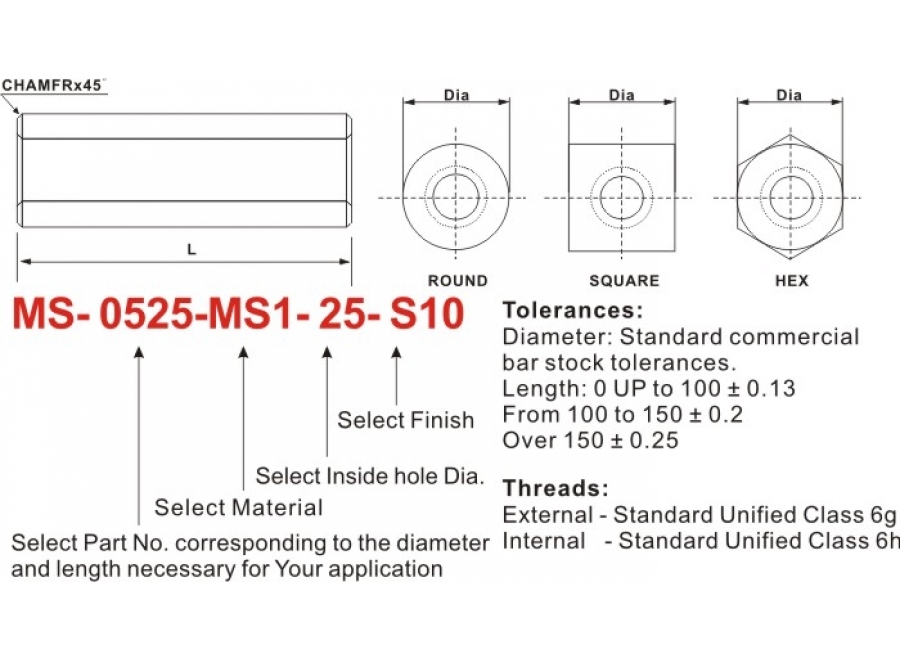

Part No.	Length	Part No.	Length	Part No.	Length
MS- 0601	1	MS- 0618	18	MS- 0635	35
MS- 0602	2	MS- 0619	19	MS- 0636	36
MS- 0603	3	MS- 0620	20	MS- 0637	37
MS- 0604	4	MS- 0621	21	MS- 0638	38
MS- 0605	5	MS- 0622	22	MS- 0639	39
MS- 0606	6	MS- 0623	23	MS- 0640	40
MS- 0607	7	MS- 0624	24	MS- 0641	41
MS- 0608	8	MS- 0625	25	MS- 0642	42
MS- 0609	9	MS- 0626	26	MS- 0643	43
MS- 0610	10	MS- 0627	27	MS- 0644	44
MS- 0611	11	MS- 0628	28	MS- 0645	45
MS- 0612	12	MS- 0629	29	MS- 0646	46
MS- 0613	13	MS- 0630	30	MS- 0647	47
MS- 0614	14	MS- 0631	31	MS- 0648	48
MS- 0615	15	MS- 0632	32	MS- 0649	49
MS- 0616	16	MS- 0633	33	MS- 0650	50
MS- 0617	17	MS- 0634	34	MS- 0651	51
