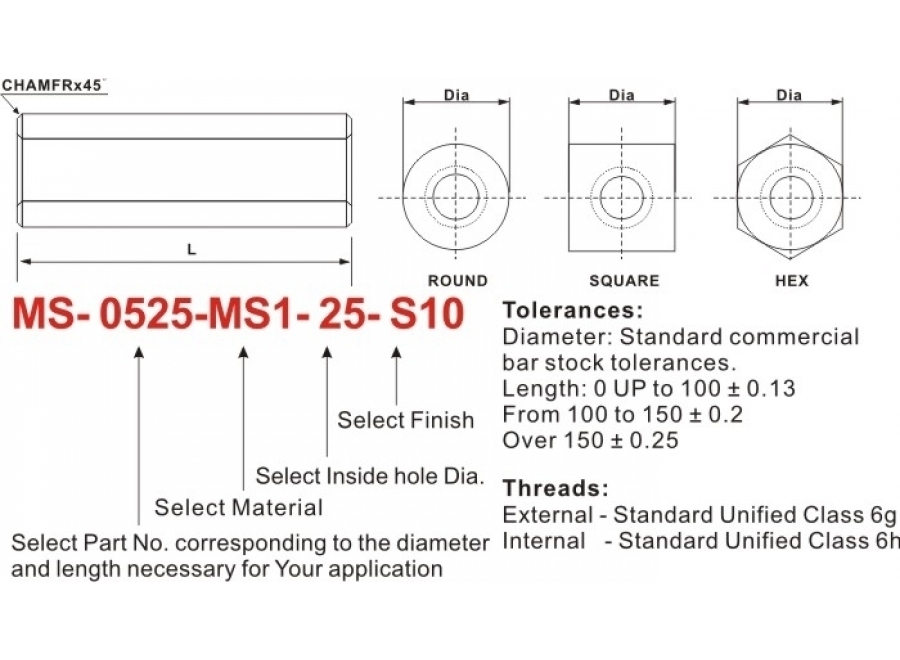

13mm Diameter Clear Hole Spacers

Description

Matreial Description	Code
Matreial Description	Round	Square	Hex
Carbon Steel	MS1	MS2	MS3
300 Series Stainless Steel	MSS1	MSS2	MSS3
Aluminum	MA1	MA2	MA3
Brass	MB1	MB2	MB3
Nylon	MN1	MN2	MN3

Code	Thread	Inside hole Dia. +.03 -.00
25	M2.5x0.45	2.7
3	M3x0.5	3.2
35	M3.5x0.6	3.7
4	M4x0.7	4.3
5	M5x0.8	5.3
6	M6x1	6.4
8	M8x1.25	8.4
10	M10x1.5	10.5
12	M12	13
14	M14	15

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
No Finish	S14
Black Oxide	S22
Black Zinc	S23
Passivate	SB5
Anodize Clear	SA1
Glossy Anodize Clear	SA2
Anodize Black	SA3
Glossy Anodize Black	SA4
Clear Iridite	SA5

Part No.	Length	Part No.	Length	Part No.	Length
MS- 1301	1	MS- 1318	18	MS- 1335	35
MS- 1302	2	MS- 1319	19	MS- 1336	36
MS- 1303	3	MS- 1320	20	MS- 1337	37
MS- 1304	4	MS- 1321	21	MS- 1338	38
MS- 1305	5	MS- 1322	22	MS- 1339	39
MS- 1306	6	MS- 1323	23	MS- 1340	40
MS- 1307	7	MS- 1324	24	MS- 1341	41
MS- 1308	8	MS- 1325	25	MS- 1342	42
MS- 1309	9	MS- 1326	26	MS- 1343	43
MS- 1310	10	MS- 1327	27	MS- 1344	44
MS- 1311	11	MS- 1328	28	MS- 1345	45
MS- 1312	12	MS- 1329	29	MS- 1346	46
MS- 1313	13	MS- 1330	30	MS- 1347	47
MS- 1314	14	MS- 1331	31	MS- 1348	48
MS- 1315	15	MS- 1332	32	MS- 1349	49
MS- 1316	16	MS- 1333	33	MS- 1350	50
MS- 1317	17	MS- 1334	34	MS- 1351	51
