CAPTIVE PANEL SCREW STYLE 6

Description

Cpative Panel Screw	Code
Style 1	CPS1
Style 2	CPS2
Style 3	CPS3
Style 4	CPS4
Style 5	CPS5
Style 6	CPS6

Material Description	Code
Brass	B
Carbon Steel	S
300 Series Stainless Steel	S

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
Black Oxide	S22
Black Zinc	S23
Tin Plated	S24
No Finish	S14
Passivate	SB5

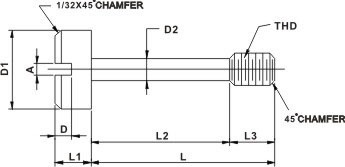

Part No.	Thread	D1 +0.20 -.0.20	L1 +0.30 -.0.30	D2 +0.00 -.0.15	L +0.30 -.0.15	L2 +0.15 -.0.00	L3 +0.15 -.0.15	A +0.15 -.0.00	B +0.30 -.0.00
CPS6-M301	M3x0.5	6.4	3.2	2	11.9	7.1	4.8	1.2	1.2
CPS6-M302	M3x0.5	6.4	3.2	2	13.5	8.7	4.8	1.2	1.2
CPS6-M3.501	M3.5x0.6	7.1	3.2	2.4	13.5	8	5.5	1.2	1.2
CPS6-M3.502	M3.5x0.6	7.1	3.2	2.4	15	9.5	5.5	1.2	1.2
CPS6-M3.503	M3.5x0.6	7.1	3.2	2.4	16.6	11.1	5.5	1.2	1.2
CPS6-M401	M4x0.7	8	4	3	16.7	10.3	6.4	1.5	1.5
CPS6-M402	M4x0.7	8	4	3	18.3	11.9	6.4	1.5	1.5
CPS6-M403	M4x0.7	8	4	3	19.9	13.5	6.4	1.5	1.5
CPS6-M501	M5x0.8	9.5	4.8	3.3	21.4	13.5	7.9	1.5	1.5
CPS6-M502	M5x0.8	9.5	4.8	3.3	23	15.1	7.9	1.5	1.5
