CAPTIVE PANEL SCREW STYLE 4-1
Cpative Panel Screw Code
Style 1 CPS1
Style 2 CPS2
Style 3 CPS3
Style 4 CPS4
Style 5 CPS5
Style 6 CPS6

Material Description Code
Brass B
Carbon Steel S
300 Series Stainless Steel S

Finish Description Code
Nickel Plate S1
Chrome Plate S2
Satin Chrome S6
Zinc Plate S10
Zinc Yellow Chromate S11
Black Oxide S22
Black Zinc S23
Tin Plated S24
No Finish S14
Passivate SB5

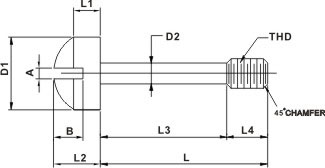

Part No. Thread D1
+0.20
-.0.20		 L1
+0.00
-.0.30		 D2
+0.15
-.0.15		 L
+0.50
-.0.50		 L2
+0.00
-.0.40		 L3
+0.30
-.0.30		 L4
+0.30
-.0.30		 A
+0.00
-.0.30		 B
+0.00
-.0.40
CPS4-M201 M2x0.4 3.5 1.5 1.5 6.5 2 2.5 4 0.8 1
CPS4-M202 M2x0.4 3.5 1.5 1.5 8 2 4 4 0.8 1
CPS4-M203 M2x0.4 3.5 1.5 1.5 9.5 2 5.5 4 0.8 1
CPS4-M204 M2x0.4 3.5 1.5 1.5 11 2 7 4 0.8 1
CPS4-M205 M2x0.4 3.5 1.5 1.5 13 2 9 4 0.8 1
CPS4-M206 M2x0.4 3.5 1.5 1.5 14.5 2 10.5 4 0.8 1
CPS4-M207 M2x0.4 3.5 1.5 1.5 16 2 12 4 0.8 1
CPS4-M208 M2x0.4 3.5 1.5 1.5 17.5 2 13.5 4 0.8 1
CPS4-M209 M2x0.4 3.5 1.5 1.5 19 2 15 4 0.8 1
CPS4-M2.501 M2.5x0.45 4 1.8 1.8 6.5 2.5 2.5 4 0.9 1.1
CPS4-M2.502 M2.5x0.45 4 1.8 1.8 8 2.5 4 4 0.9 1.1
CPS4-M2.503 M2.5x0.45 4 1.8 1.8 9.5 2.5 2.5 4 0.9 1.1
CPS4-M2.504 M2.5x0.45 4 1.8 1.8 11 2.5 7 4 0.9 1.1
CPS4-M2.505 M2.5x0.45 4 1.8 1.8 13 2.5 9 4 0.9 1.1
CPS4-M2.506 M2.5x0.45 4 1.8 1.8 14.5 2.5 10.5 4 0.9 1.1
CPS4-M2.507 M2.5x0.45 4 1.8 1.8 16 2.5 12 4 0.9 1.1
CPS4-M2.508 M2.5x0.45 4 1.8 1.8 17.5 2.5 13.5 4 0.9 1.1
CPS4-M2.509 M2.5x0.45 4 1.8 1.8 19 2.5 15 4 0.9 1.1
CPS4-M301 M3x0.5 4.3 2 2 6/5 2.7 1.7 4.8 1 1.2
CPS4-M302 M3x0.5 4.3 2 2 8 2.7 3.2 4.8 1 1.2
CPS4-M303 M3x0.5 4.3 2 2 9.5 2.7 4.7 4.8 1 1.2
CPS4-M304 M3x0.5 4.3 2 2 11 2.7 6.2 4.8 1 1.2
CPS4-M305 M3x0.5 4.3 2 2 13 2.7 8.2 4.8 1 1.2
CPS4-M306 M3x0.5 4.3 2 2 14.5 2.7 9.7 4.8 1 1.2
CPS4-M307 M3x0.5 4.3 2 2 16 2.7 11.2 4.8 1 1.2
CPS4-M308 M3x0.5 4.3 2 2 17.5 2.7 12.7 4.8 1 1.2
CPS4-M309 M3x0.5 4.3 2 2 19 2.7 14.2 4.8 1 1.2
CPS4-M310 M3x0.5 4.3 2 2 20.5 2.7 15.7 4.8 1 1.2
CPS4-M311 M3x0.5 4.3 2 2 22 2.7 17.2 4.8 1 1.2
CPS4-M312 M3x0.5 4.3 2 2 24 2.7 19.2 4.8 1 1.2
CPS4-M313 M3x0.5 4.3 2 2 25.5 2.7 20.7 4.8 1 1.2
CPS4-M3.501 M3.5x0.6 5.5 2.4 2.4 8 3.3 2.5 5.5 1.2 1.5
CPS4-M3.502 M3.5x0.6 5.5 2.4 2.4 9.5 3.3 4 5.5 1.2 1.5
CPS4-M3.503 M3.5x0.6 5.5 2.4 2.4 11 3.3 5.5 5.5 1.2 1.5
CPS4-M3.504 M3.5x0.6 5.5 2.4 2.4 13 3.3 7.5 5.5 1.2 1.5
CPS4-M3.505 M3.5x0.6 5.5 2.4 2.4 14.5 3.3 9 5.5 1.2 1.5
CPS4-M3.506 M3.5x0.6 5.5 2.4 2.4 16 3.3 10.5 5.5 1.2 1.5
CPS4-M3.507 M3.5x0.6 5.5 2.4 2.4 17.5 3.3 12 5.5 1.2 1.5
CPS4-M3.508 M3.5x0.6 5.5 2.4 2.4 19 3.3 13.5 5.5 1.2 1.5
CPS4-M3.509 M3.5x0.6 5.5 2.4 2.4 20.5 3.3 15 5.5 1.2 1.5
CPS4-M3.510 M3.5x0.6 5.5 2.4 2.4 22 3.3 16.5 5.5 1.2 1.5
CPS4-M3.511 M3.5x0.6 5.5 2.4 2.4 24 3.3 18.5 5.5 1.2 1.5
CPS4-M3.512 M3.5x0.6 5.5 2.4 2.4 25.5 3.3 20 5.5 1.2 1.5
