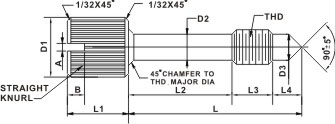

CAPTIVE PANEL SCREW STYLE 2-1
Cpative Panel Screw Code
Style 1 CPS1
Style 2 CPS2
Style 3 CPS3
Style 4 CPS4
Style 5 CPS5
Style 6 CPS6

Material Description Code
Brass B
Carbon Steel S
300 Series Stainless Steel S

Finish Description Code
Nickel Plate S1
Chrome Plate S2
Satin Chrome S6
Zinc Plate S10
Zinc Yellow Chromate S11
Black Oxide S22
Black Zinc S23
Tin Plated S24
No Finish S14
Passivate SB5




Part No. Thread D1
+0.50
-.0.20		 L1
+0.30
-.0.30		 D2
+0.15
-.0.15		 D3
+0.00
-.0.30		 L
+0.50
-.0.50		 L2
+0.30
-.0.30		 L3
+0.00
-.0.40		 L4
+0.40
-.0.40		 A
+0.20
-.0.00		 B
+0.30
-.0.00
CPS2-M301 M3x0.5 6.5 6.5 2 2 9.5 4.3 3.2 2 1.2 2
CPS2-M302 M3x0.5 6.5 6.5 2 2 11 5.8 3.2 2 1.2 2
CPS2-M303 M3x0.5 6.5 6.5 2 2 13 7.8 3.2 2 1.2 2
CPS2-M304 M3x0.5 6.5 6.5 2 2 14.5 9.3 3.2 2 1.2 2
CPS2-M305 M3x0.5 6.5 6.5 2 2 16 10.8 3.2 2 1.2 2
CPS2-M306 M3x0.5 6.5 6.5 2 2 17.5 12.3 3.2 2 1.2 2
CPS2-M307 M3x0.5 6.5 6.5 2 2 19 13.8 3.2 2 1.2 2
CPS2-M308 M3x0.5 6.5 6.5 2 2 20.5 15.3 3.2 2 1.2 2
CPS2-M309 M3x0.5 6.5 6.5 2 2 22 16.8 3.2 2 1.2 2
CPS2-M310 M3x0.5 6.5 6.5 2 2 24 18.8 3.2 2 1.2 2
CPS2-M311 M3x0.5 6.5 6.5 2 2 25.5 20.3 3.2 2 1.2 2
CPS2-M312 M3x0.5 8 8 2 2 9.5 4.3 3.2 2 1.2 2
CPS2-M313 M3x0.5 8 8 2 2 11 5.8 3.2 2 1.2 2
CPS2-M314 M3x0.5 8 8 2 2 13 7.8 3.2 2 1.2 2
CPS2-M315 M3x0.5 8 8 2 2 14.5 9.3 3.2 2 1.2 2
CPS2-M316 M3x0.5 8 8 2 2 16 10.8 3.2 2 1.2 2
CPS2-M317 M3x0.5 8 8 2 2 17.5 12.3 3.2 2 1.2 2
CPS2-M318 M3x0.5 8 8 2 2 19 13.8 3.2 2 1.2 2
CPS2-M319 M3x0.5 8 8 2 2 20.5 15.3 3.2 2 1.2 2
CPS2-M320 M3x0.5 8 8 2 2 22 16.8 3.2 2 1.2 2
CPS2-M321 M3x0.5 8 8 2 2 24 18.8 3.2 2 1.2 2
CPS2-M322 M3x0.5 8 8 2 2 25.5 20.3 3.2 2 1.2 2
CPS2-M3.501 M3.5x0.6 8 8 2.5 2.5 11 3 5.5 2.5 1.2 2
CPS2-M3.502 M3.5x0.6 8 8 2.5 2.5 13 5 5.5 2.5 1.2 2
CPS2-M3.503 M3.5x0.6 8 8 2.5 2.5 14.5 6.5 5.5 2.5 1.2 2
CPS2-M3.504 M3.5x0.6 8 8 2.5 2.5 16 8 5.5 2.5 1.2 2
CPS2-M3.505 M3.5x0.6 8 8 2.5 2.5 17.5 9.5 5.5 2.5 1.2 2
CPS2-M3.506 M3.5x0.6 8 8 2.5 2.5 19 11 5.5 2.5 1.2 2
CPS2-M3.507 M3.5x0.6 8 8 2.5 2.5 20.5 12.5 5.5 2.5 1.2 2
CPS2-M3.508 M3.5x0.6 8 8 2.5 2.5 22 14 5.5 2.5 1.2 2
CPS2-M3.509 M3.5x0.6 8 8 2.5 2.5 24 16 5.5 2.5 1.2 2
CPS2-M3.510 M3.5x0.6 8 8 2.5 2.5 25.5 17.5 5.5 2.5 1.2 2
CPS2-M3.511 M3.5x0.6 8 8 2.5 2.5 27 19 5.5 2.5 1.2 2
CPS2-M3.512 M3.5x0.6 8 8 2.5 2.5 28.5 20.5 5.5 2.5 1.2 2
CPS2-M3.513 M3.5x0.6 8 8 2.5 2.5 30.5 22.5 5.5 2.5 1.2 2
CPS2-M3.514 M3.5x0.6 8 8 2.5 2.5 32 24 5.5 2.5 1.2 2
CPS2-M401 M4x0.7 8 8 3 3 11 3 5.5 2.5 1.2 2
CPS2-M3.502 M4x0.7 8 8 3 3 13 5 5.5 2.5 1.2 2
CPS2-M3.503 M4x0.7 8 8 3 3 14.5 6.5 5.5 2.5 1.2 2
CPS2-M3.504 M4x0.7 8 8 3 3 16 8 5.5 2.5 1.2 2
CPS2-M3.505 M4x0.7 8 8 3 3 17.5 9.5 5.5 2.5 1.2 2
CPS2-M3.506 M4x0.7 8 8 3 3 19 11 5.5 2.5 1.2 2
CPS2-M3.507 M4x0.7 8 8 3 3 20.5 12.5 5.5 2.5 1.2 2
CPS2-M3.508 M4x0.7 8 8 3 3 22 14 5.5 2.5 1.2 2
CPS2-M3.509 M4x0.7 8 8 3 3 24 16 5.5 2.5 1.2 2
CPS2-M3.510 M4x0.7 8 8 3 3 25.5 17.5 5.5 2.5 1.2 2
CPS2-M3.511 M4x0.7 8 8 3 3 27 19 5.5 2.5 1.2 2
CPS2-M3.512 M4x0.7 8 8 3 3 28.5 20.5 5.5 2.5 1.2 2
CPS2-M3.513 M4x0.7 8 8 3 3 30.5 22.5 5.5 2.5 1.2 2
CPS2-M3.514 M4x0.7 8 8 3 3 32 24 5.5 2.5 1.2 2
