CAPTIVE PANEL SCREW STYLE 2-1

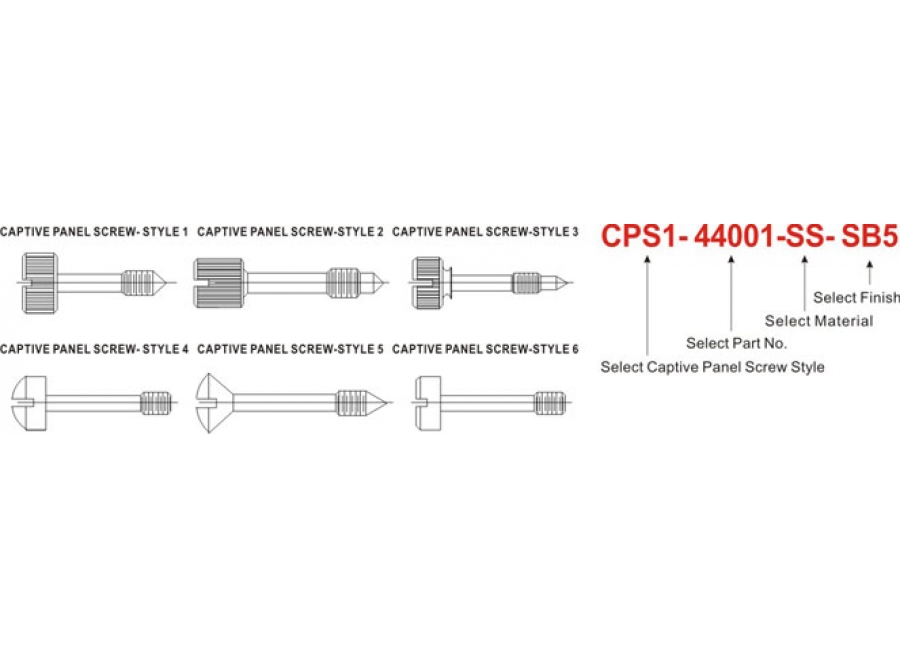

Cpative Panel Screw Code
Style 1 CPS1
Style 2 CPS2
Style 3 CPS3
Style 4 CPS4
Style 5 CPS5
Style 6 CPS6

Material Description Code
Brass B
Carbon Steel S
300 Series Stainless Steel S

Finish Description Code
Nickel Plate S1
Chrome Plate S2
Satin Chrome S6
Zinc Plate S10
Zinc Yellow Chromate S11
Black Oxide S22
Black Zinc S23
Tin Plated S24
No Finish S14
Passivate SB5




Part No. Thread D1
+.015
-.000		 L1
+.015
-.000		 D2
+.015
-.000		 D3
+.015
-.000		 L
+.015
-.000		 L2
+.015
-.000		 L3
+.015
-.000		 L4
+.015
-.000		 A
+.015
-.000		 B
+.015
-.000		 KNURL TPI
CPS2-44001 4-40 1/4 1/4 .078 .078 3/8 11/64 1/8 5/64 3/64 5/64 35
CPS2-44002 4-40 1/4 1/4 .078 .078 7/16 15/64 1/8 5/64 3/64 5/64 35
CPS2-44003 4-40 1/4 1/4 .078 .078 1/2 19/64 1/8 5/64 3/64 5/64 35
CPS2-44004 4-40 1/4 1/4 .078 .078 9/16 23/64 1/8 5/64 3/64 5/64 35
CPS2-44005 4-40 1/4 1/4 .078 .078 5/8 27/64 1/8 5/64 3/64 5/64 35
CPS2-44006 4-40 1/4 1/4 .078 .078 11/16 31/64 1/8 5/64 3/64 5/64 35
CPS2-44007 4-40 1/4 1/4 .078 .078 3/4 35/64 1/8 5/64 3/64 5/64 35
CPS2-44008 4-40 1/4 1/4 .078 .078 13/16 39/64 1/8 5/64 3/64 5/64 35
CPS2-44009 4-40 1/4 1/4 .078 .078 7/8 43/64 1/8 5/64 3/64 5/64 35
CPS2-44010 4-40 1/4 1/4 .078 .078 15/16 47/64 1/8 5/64 3/64 5/64 35
CPS2-44011 4-40 1/4 1/4 .078 .078 1 51/64 1/8 5/64 3/64 5/64 35
CPS2-44012 4-40 5/16 5/16 .078 .078 3/8 11/64 1/8 5/64 3/64 5/64 35
CPS2-44013 4-40 5/16 5/16 .078 .078 7/16 15/64 1/8 5/64 3/64 5/64 35
CPS2-44014 4-40 5/16 5/16 .078 .078 1/2 19/64 1/8 5/64 3/64 5/64 35
CPS2-44015 4-40 5/16 5/16 .078 .078 9/16 23/64 1/8 5/64 3/64 5/64 35
CPS2-44016 4-40 5/16 5/16 .078 .078 5/8 27/64 1/8 5/64 3/64 5/64 35
CPS2-44017 4-40 5/16 5/16 .078 .078 11/16 31/64 1/8 5/64 3/64 5/64 35
CPS2-44018 4-40 5/16 5/16 .078 .078 3/4 35/64 1/8 5/64 3/64 5/64 35
CPS2-44019 4-40 5/16 5/16 .078 .078 13/16 39/64 1/8 5/64 3/64 5/64 35
CPS2-44020 4-40 5/16 5/16 .078 .078 7/8 43/64 1/8 5/64 3/64 5/64 35
CPS2-44021 4-40 5/16 5/16 .078 .078 15/16 47/64 1/8 5/64 3/64 5/64 35
CPS2-44022 4-40 5/16 5/16 .078 .078 1 51/64 1/8 5/64 3/64 5/64 35
CPS2-63201 6-32 5/16 5/16 .095 .095 7/16 1/8 7/32 3/32 3/64 5/64 35
CPS2-63202 6-32 5/16 5/16 .095 .095 1/2 3/16 7/32 3/32 3/64 5/64 35
CPS2-63203 6-32 5/16 5/16 .095 .095 9/16 1/4 7/32 3/32 3/64 5/64 35
CPS2-63204 6-32 5/16 5/16 .095 .095 5/8 5/16 7/32 3/32 3/64 5/64 35
CPS2-63205 6-32 5/16 5/16 .095 .095 11/16 3/8 7/32 3/32 3/64 5/64 35
CPS2-63206 6-32 5/16 5/16 .095 .095 3/4 7/16 7/32 3/32 3/64 5/64 35
CPS2-63207 6-32 5/16 5/16 .095 .095 13/16 1/2 7/32 3/32 3/64 5/64 35
CPS2-63208 6-32 5/16 5/16 .095 .095 7/8 9/16 7/32 3/32 3/64 5/64 35
CPS2-63209 6-32 5/16 5/16 .095 .095 15/16 5/8 7/32 3/32 3/64 5/64 35
CPS2-63210 6-32 5/16 5/16 .095 .095 1 11/16 7/32 3/32 3/64 5/64 35
CPS2-63211 6-32 5/16 5/16 .095 .095 1-1/16 3/4 7/32 3/32 3/64 5/64 35
CPS2-63212 6-32 5/16 5/16 .095 .095 1-1/8 13/16 7/32 3/32 3/64 5/64 35
CPS2-63213 6-32 5/16 5/16 .095 .095 1-3/16 7/8 7/32 3/32 3/64 5/64 35
CPS2-63214 6-32 5/16 5/16 .095 .095 1-1/4 15/16 7/32 3/32 3/64 5/64 35
